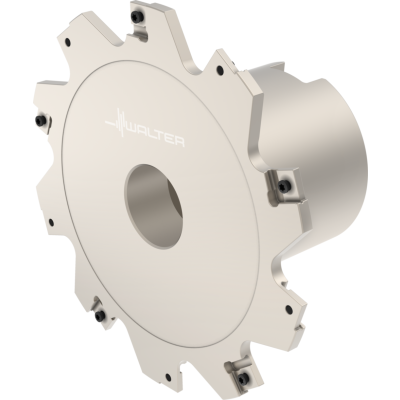

Slotting cutters for ‌slot milling

F4053.BN27.100.Z05.04R

EAN-code: 0567873726
M-slitting-Icon M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-neg-Icon
2 + 2 cutting edges per indexable insert, lateral arrangement Cross-toothed, cuts on three sides
P
M
K
N
S
H
O
VAT 0% 1250,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

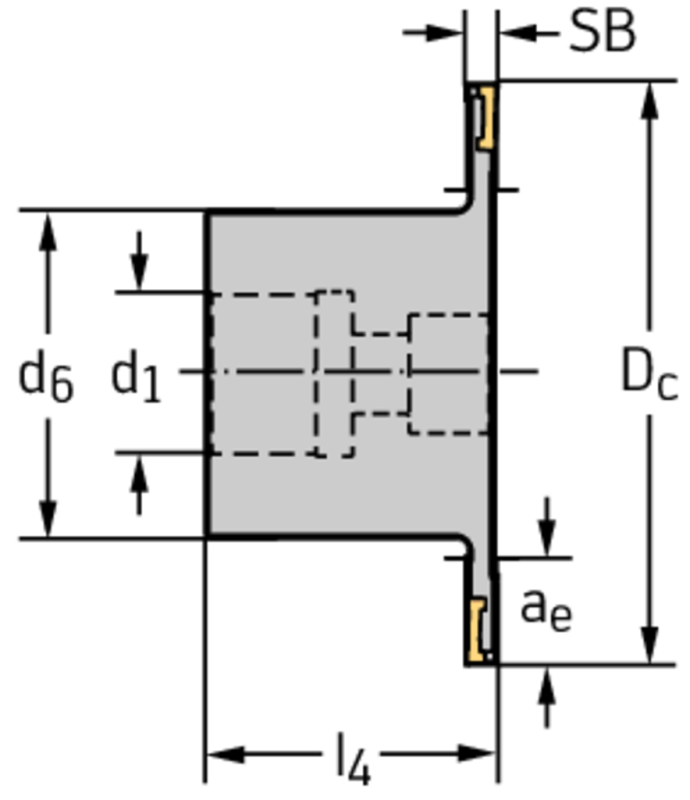

Technical details
Description Symbol Value
Maximum cutting depth
ae
24 mm
Number of indexable inserts
Number of WSP
10
Cutting width
SB
4 mm
Cutting edge diameter
Dc
100 mm
Mounting diameter
d1
27 mm
Hub diameter
d6
48 mm
Functional length
l4
50 mm
Tool designation
Designation
F4053.BN27.100.Z05.04R
Possible indexable inserts
Type
LN . X070204
Weight
0,71 kg
Number of teeth
Z
5
Compatible products
Products
Adaptors
Accessories
Assembly parts
LNMX-F57-TTGPVD-P-01
LNMX-F57
Tangential rhombic
Show variations
P
M
K
N
S
H
O
LNHX-F57-TTGPVD-P-01
LNHX-F57
Tangential rhombic
Show variations
P
M
K
N
S
H
O
AB001-S-P-01
AB001-S
DIN 69871 AD/B shell mill arbor
Show variations
AB001-J-P-01
AB001-J
MAS-BT JIS B 6339 shell mill arbor
Show variations
AB001-H-P-01
AB001-H
DIN 69893-1 A shell mill arbor
Show variations
W-A-AK155-CAPTO-P-01
AB001-C
Shell mill adaptor
Show variations
W A A150M NCT P 01
A150M.0
Combination adaptor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
