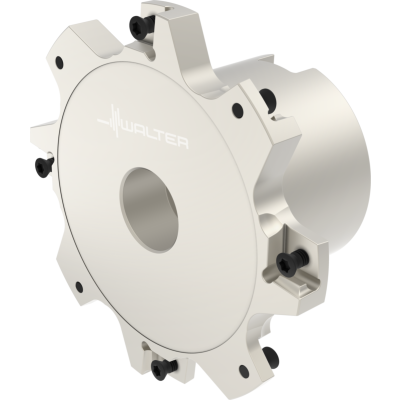

Slotting cutters for slot milling
F4153.BN22.080.Z04.08R
EAN-code: 0567850726
2 + 2 cutting edges per indexable insert, tangential arrangement
Cross-toothed, cuts on three sides
P
M
K
N
S
H
O
VAT 0%
1016,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Max. depth of cut
ae
16 mm
Number of indexable inserts
No. of inserts
8 PCE
Max. depth of cut
SB
8 mm
Cutting edge diameter
Dc
80 mm
Mounting diameter
d1
22 mm
Hub diameter
d6
45 mm
Functional length
l4
40 mm
Tool designation
Designation
F4153.BN22.080.Z04.08R
Possible indexable inserts
Type
LN . U080404
Weight
WT
0,58 kg
Number of teeth
Z
4
