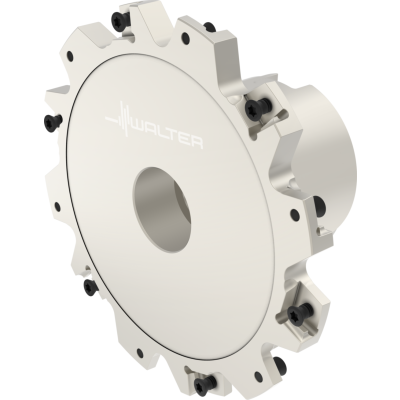

Slotting cutters for ‌slot milling

F4153.BN32.125.Z06.10R

EAN-code: 0567861726
M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-neg-Icon
2 + 2 cutting edges per indexable insert, tangential arrangement Cross-toothed, cuts on three sides
P
M
K
N
S
H
O
VAT 0% 1442,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Max. depth of cut
ae
30 mm
Number of indexable inserts
No. of inserts
12 PCE
Max. depth of cut
SB
10 mm
Cutting edge diameter
Dc
125 mm
Mounting diameter
d1
32 mm
Hub diameter
d6
60 mm
Functional length
l4
50 mm
Tool designation
Designation
F4153.BN32.125.Z06.10R
Possible indexable inserts
Type
LN . U100508
Weight
WT
1,41 kg
Number of teeth
Z
6
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI LNMU F57T TTG P 01
LNMU-F57T
Tangential rhombic
Show variations
W MI LNMU B57T TTG P 01
LNMU-B57
Tangential rhombic
Show variations
W MI LNHU F57T TTG P 01
LNHU-F57
Tangential rhombic
Show variations
W MI LNHU B57T TTG P 01
LNHU-B57
Tangential rhombic
Show variations
W A A150M NCT P 01
A150M.0
Combination adaptor
Show variations
W A AK155 SK P 01
AK155.S
DIN 69871 AD/B shell mill arbor
Show variations
W A AK155 BT P 01
AK155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A A155M HSK P 01
A155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
