Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Tangential inserts F5041 and F2010, LN.U0904.. ScrewFit 0655356724
Shoulder milling cutters

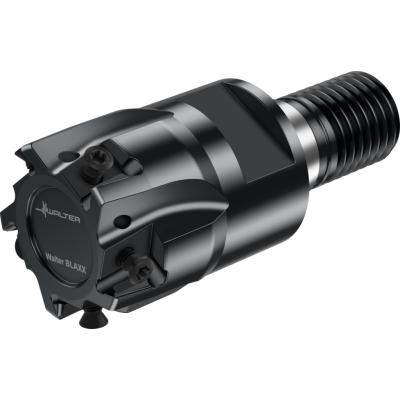

F5041.T28.032.Z05.08

EAN-code: 0655356724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert Tangential arrangement of indexable inserts
P
M
K
N
S
H
O
VAT 0% 440,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W Mi F5041 T D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
8 mm
Number of indexable inserts
No. of inserts
5 PCE
Cutting edge diameter
Dc
32 mm
Maximum projection length
l4
4 mm
Tool designation
Designation
F5041.T28.032.Z05.08
Possible indexable inserts
Type
LNH . 0904 .. R
Weight
WT
0,22 kg
Number of teeth
Z
5
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI LNMU L55T TTG P 01
LNMU-L55T
Tangential rhombic
Show variations
W MI LNHX PDR L55T P 01
LNHX-L55T
Finishing inserts
Show variations
W MI LNHU L65T SILVER P 01
LNHU-L65T
Tangential rhombic
Show variations
W MI LNHU ANN L55T CU P 01
LNHU-L85T
Tangential rhombic
Show variations
W MI LNHU L55T TTG P 01
LNHU-L55T
Tangential rhombic
Show variations
W-A-AK540-BT-P-01
AK540.BT-SK50
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK540-BT-P-01
AK540.BT-SK40
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK512-Z-P-01
AK512.Z-C
DIN 1835 A adaptor
Show variations
W-A-AK512-Z-P-01
AK512.Z-B
DIN 1835 A adaptor
Show variations
W-A-AK510-Z-P-01
AK510.Z-B
DIN 1835 A adaptor
Show variations
W-A-AK510-Z-P-01
AK510.Z-C
DIN 1835 A adaptor
Show variations
W A AK521 T P 01
AK522.TC
Reduction adaptor
Show variations
W A AC060 CAPTO P 01
AC060-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AC060 SK P 01
AC060-S
SK adaptor – vibration-damped
Show variations
W A AC060 MAS BT P 01
AC060-J
MAS-BT adaptor – vibration-damped
Show variations
W A AC060 HSK P 01
AC060-H
HSK adaptor – vibration-damped
Show variations
W A AK580 CAPTO P 01
AK580.C
Walter CaptoTM adaptor
Show variations
W-A-AK541-SK-P-01
AK541.S-SK50
DIN 69871 AD/B adaptor
Show variations
W A AK541 SK P 01
AK541.S-SK40
DIN 69871 AD/B adaptor
Show variations
W A AK541 BT P 01
AK541.BT-SK40
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK540-SK-P-01
AK540.S-SK50
DIN 69871 AD/B adaptor
Show variations
W A AK540 SK P 01
AK540.S-SK40
DIN 69871 AD/B adaptor
Show variations
W A AK531 HSK P 01
AK531.H
DIN 69893-1 A adaptor
Show variations
W-A-AK530-HSK-P-01
AK530.H63
DIN 69893-1 A adaptor
Show variations
W-A-AK530-HSK-P-01
AK530.H100
DIN 69893-1 A adaptor
Show variations
W A AK521 T P 01
AK521.T
Reduction adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
