Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Tangential inserts F5241, LN.U1607.. F5241-B2-LN16, Dc= 160mm F5241.B40.160.Z12.15
Shoulder milling cutters

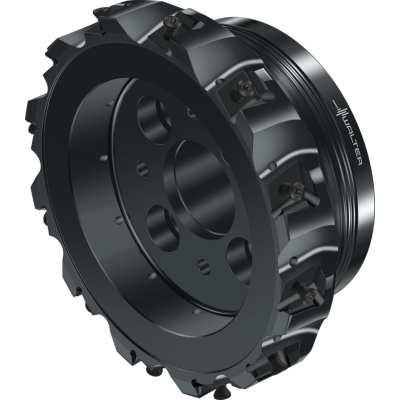

F5241.B40.160.Z12.15

EAN-code: 0683989724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-90-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert Tangential arrangement of indexable inserts
VAT 0% 1337,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-F5141-B2-LN13-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
15 mm
Number of indexable inserts - face
Number of WSP
12 EA
Cutting edge diameter
Dc
160 mm
Connection diameter
d1
40
Maximum projection length
l4
63 mm
Tool designation
Designation
F5241.B40.160.Z12.15
Possible indexable inserts
Type
LNHU1607 .. R
Weight
4,94 kg
Number of teeth
Z
12
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI LNHU ANN L55T CU P 01
LNHU-L85T
Tangential rhombic
Show variations
P
M
K
N
S
H
O
LNHU-L55T-TTGPVD-P-01
LNHU-L55T
Tangential rhombic
Show variations
P
M
K
N
S
H
O
AB001-S-P-01
AB001-S
DIN 69871 AD/B shell mill arbor
Show variations
AB001-J-P-01
AB001-J
MAS-BT JIS B 6339 shell mill arbor
Show variations
AB001-H-P-01
AB001-H
DIN 69893-1 A shell mill arbor
Show variations
W-A-AK155-CAPTO-P-01
AB001-C
Shell mill adaptor
Show variations
W-EZ-Z-DISK-SET-WH-P-01
Z_DISK_SET
Seal
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
