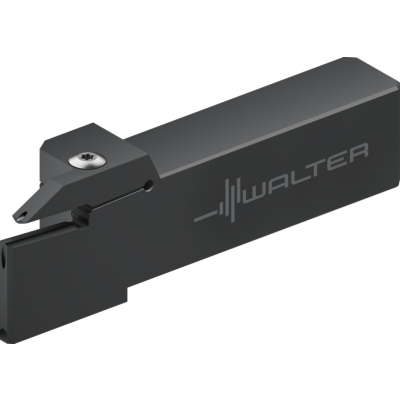

Shank tool – Radial grooving

G1011.3225R-8T28GX30-P

EAN-code: 0824947935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
PointCool-Icon T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping Precision cooling
VAT 0% 293,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
b
25 mm
Maximum cutting depth
Tmax
28 mm
Indexable insert width
s
8
Shank height
h = h1
32 mm
Overall length
l1
145 mm
Maximum overhang
l4
55 mm
Tool designation
Designation
G1011.3225R-8T28GX30-P
Possible indexable inserts
Type
GX30-5E8 ..
Body width
s1
6,1 mm
Functional width
f1
22 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
W T GX24 RD4 SILVER P 01
GX-E-RD4
Grooving and copy turning – cutting inserts
Show variations
P
M
K
N
S
H
O
W T GX24 UD4 SILVER P 01
GX-E-UD4
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
GX24-RF8-SILVER-P-01
GX-E-RF8
Grooving and copy turning – cutting inserts
Show variations
P
M
K
N
S
H
O
GX24-UF4-SILVER-P-01
GX-E-UF4
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
W A CASHA CAPTO P 01
ASH-RADIAL-1-CAPTO
Radial adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
