Products Cutting tools Turning Grooving and cutting External grooving Grooving toolholders Radial grooving Walter Cut GX G1011-P – With precision cooling G1011-20-32-R-GX-P Tmax= 12 - 33mm 0890403935

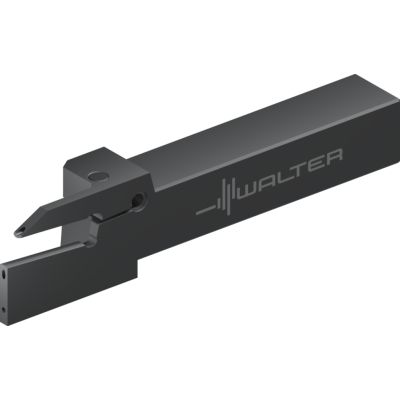

Shank tool – Radial grooving

G1011.2525R-4T33GX34-P

EAN-code: 0890403935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
PointCool-Icon T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping Precision cooling
VAT 0% 238,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G1011-P-EX-D-02
Enlarge
Description Symbol Value
Shank width
B
25 mm
Maximum cutting depth
Tmax
33 mm
Maximum parting diameter
Dmax
140 mm
Indexable insert width
s
4 mm
Shank height
h = h1
25 mm
Overall length
l1
145 mm
maximum overhang
l4
53 mm
Tool designation
Designation
G1011.2525R-4T33GX34-P
Possible indexable inserts
Type
GX34-3E4 ..
Body width
s1
3,3 mm
Functional width
f1
23,4 mm
