Products Cutting tools Turning Grooving and cutting External grooving Grooving toolholders Radial grooving Walter Cut GX G1011-P – With precision cooling G1011-20-32-R-GX-P Tmax= 12 - 33mm 0954333935

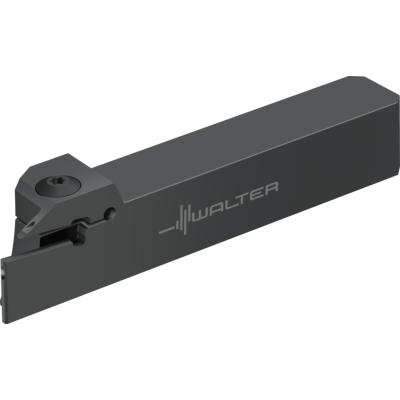

Shank tool – Radial grooving

G1011.2020R-3T12GX24-P

EAN-code: 0954333935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
PointCool-Icon T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping Precision cooling
VAT 0% 223,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G1011-P-EX-D-02
Enlarge
Description Symbol Value
Shank width
B
20 mm
Maximum cutting depth
Tmax
12 mm
Maximum parting diameter
Dmax
50 mm
Indexable insert width
s
3 mm
Shank height
h = h1
20 mm
Overall length
l1
120 mm
maximum overhang
l4
31,5 mm
Tool designation
Designation
G1011.2020R-3T12GX24-P
Possible indexable inserts
Type
GX24-2E3 ..; GX24-2F3 ..
Body width
s1
2,4 mm
Functional width
f1
18,8 mm
