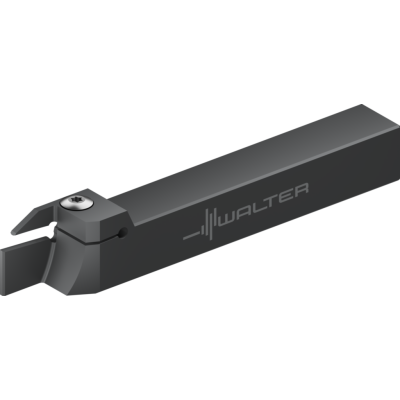

Shank tool – Radial grooving

G1011.2020L-6T21GX24

EAN-code: 0585128935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping
VAT 0% 148,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G4011-20-32-L-DX-VERST-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Maximum cutting depth
Tmax
21 mm
Indexable insert width
s
6 mm
Shank height
h = h1
20 mm
Overall length
l1
150 mm
maximum overhang
l4
40 mm
Tool designation
Designation
G1011.2020L-6T21GX24
Possible indexable inserts
Type
GX24-4E6 ..
Body width
s1
5,2 mm
Functional width
f1
17,4 mm
