0585117935

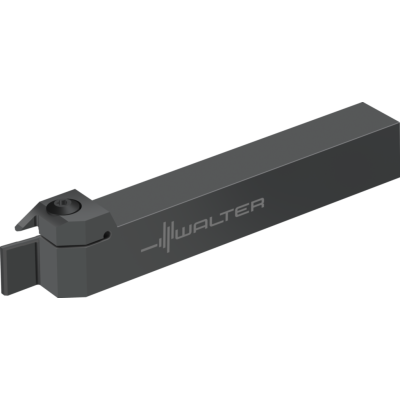

G1011-2020L-4T12GX24-P-MV-AD image

Shank tool – Radial grooving

G1011.2020L-4T12GX24

EAN-code: 0585117935

T-Ex-Grooving-Icon

T-Ex-Parting-Icon

T-Ex-Turning-Icon

T-WSP-GX-E-Icon

T-WSP-GX-F-Icon

Screw clamping

VAT 0% 148,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

W-T-G1011L-ISO-EX-D-01

Description Symbol Value

Shank width

B

20 mm

Maximum cutting depth

T_max

12 mm

Indexable insert width

s

4 mm

Shank height

h = h₁

20 mm

Overall length

l₁

145 mm

maximum overhang

l₄

35 mm

Tool designation

Designation

G1011.2020L-4T12GX24

Possible indexable inserts

Type

GX24-3E4 ..; GX24-3F4 ..

Body width

s₁

3,4 mm

Functional width

f₁

18,3 mm
