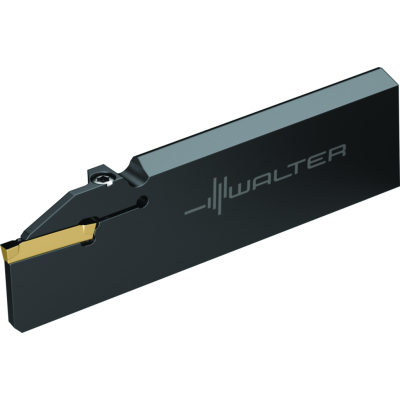

Reinforced parting blade – Contra

G1041.32R-2T32GX24C

EAN-code: 0753892937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping
VAT 0% 199,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Maximum cutting depth
Tmax
32 mm
Indexable insert width
s
2
Maximum grooving diameter
Dmax
65 mm
Shank height
h4
32 mm
Center height
h1
24,6 mm
Overall length
l1
110 mm
Tool designation
Designation
G1041.32R-2T32GX24C
Possible indexable inserts
Type
GX24-1E2 ..
Body width
s1
1,5 mm
Compatible products
Products
Adaptors
Products
Accessories
Assembly parts
GX-E-CE4-TTG-P-01
GX-E-CE4
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
GX-E-CF5-TTG-P-01
GX-E-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W T GX24 CF6 SILVER P 01
GX-E-CF6
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
GX-UF8-SILVER-P-01
GX-E-UF8
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
W T G2661 P P 01
G2661-16-40-N-SX-P
Clamping block with internal coolant
Show variations
W A A2111 P L P 01
A2111-VDI-P
VDI adaptor – DIN 69880 parting blades
Show variations
W-A-A2110-P-L-P-01
A2110-VDI40-P
VDI adaptor – DIN 69880 parting blades
Show variations
W-A-A2110-P-L-P-01
A2110-VDI25/30-P
VDI adaptor – DIN 69880 parting blades
Show variations
W A A2110 BT45 P P 04
A2110-BMT-P
BMT adaptor – Parting blades
Show variations
W T G2661 P P 01
G2661-16-40-N-SX-P
Clamping block with internal coolant
Show variations
W T SBN P 01
SBN
Clamping block
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
