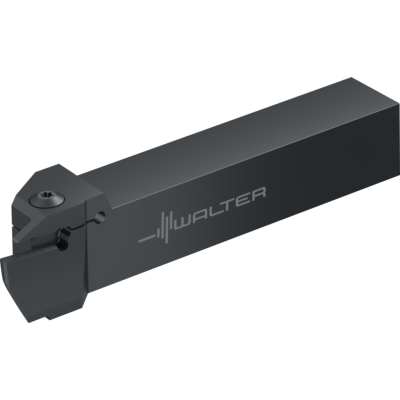

Shank tool – Axial grooving

G1111.2525R-5T12-060GX24

EAN-code: 0558599935

Screw clamping

VAT 0% 173,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Shank width

25 mm

Maximum cutting depth

T_max

12 mm

Indexable insert width

5 mm

Minimum diameter

D_min

60 mm

Maximum workpiece diameter

D_max

95 mm

Shank height

h = h₁

25 mm

Overall length

l₁

15 mm

maximum overhang

l₄

40 mm

Tool designation

Designation

G1111.2525R-5T12-060GX24

Possible indexable inserts

Type

GX24-3E5 ..; GX24-3F5 ..

Body width

s₁

4,2 mm

Functional width

f₁

23,6 mm
