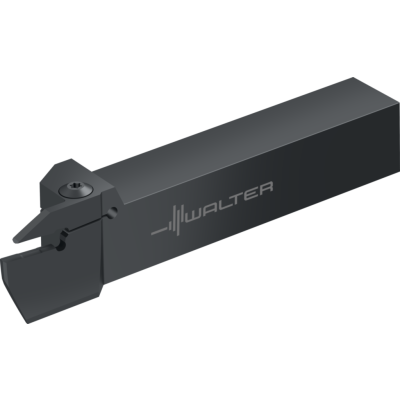

Shank tool – Axial grooving

G1111.2525R-3T19-054GX24

EAN-code: 0586880935
T-In-Axial-Icon
T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping
VAT 0% 173,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
B
25 mm
Maximum cutting depth
Tmax
19 mm
Indexable insert width
s
3 mm
Minimum diameter
Dmin
54 mm
Maximum workpiece diameter
Dmax
75 mm
Shank height
h = h1
25 mm
Overall length
l1
152 mm
maximum overhang
l4
42 mm
Tool designation
Designation
G1111.2525R-3T19-054GX24
Possible indexable inserts
Type
GX24-2E3 ..; GX24-2F3 ..
Body width
s1
2,4 mm
Functional width
f1
24,7 mm
