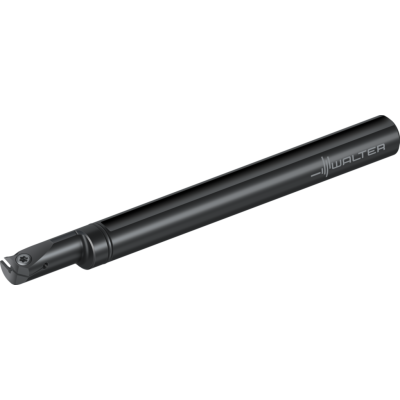

Boring bar – Internal grooving
G1221-20QL-3T06-GX09-P
EAN-code: 0854829936
Screw clamping
Precision cooling
VAT 0%
250,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum cutting depth
Tmax
6 mm
Indexable insert width
s
2,5 mm
Boring bar diameter d 1
d1
20 mm
minimum bore diameter
Dmin
20 mm
Functional length
l21
178,9 mm
Overall length
l1
180,45 mm
Maximum projection length
l4
35,9 mm
Tool designation
Designation
G1221-20QL-3T06-GX09-P
Possible indexable inserts
Type
GX09-2E3 ..
Body width
s1
2,1 mm
Functional width
f
16,6 mm
