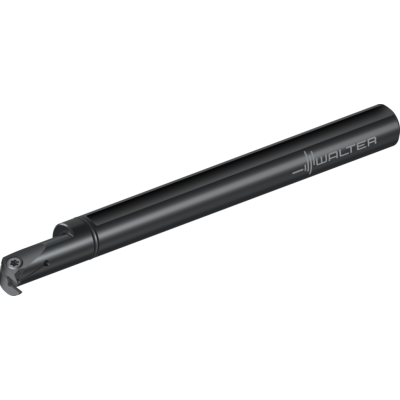

Boring bar – Internal grooving

G1221-20QR-2T06-GX09-P

EAN-code: 0854826936
T-In-Grooving-Icon T-In-Turning-Icon
PointCool-Icon T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping Precision cooling
VAT 0% 258,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Maximum cutting depth
Tmax
6 mm
Indexable insert width
s
2 - 2.5
Boring bar diameter d 1
d1
20 mm
Minimum bore diameter
Dmin
20 mm
Functional length
l21
179,3 mm
Overall length
l1
180,3 mm
Maximum projection length
l4
36,3 mm
Tool designation
Designation
G1221-20QR-2T06-GX09-P
Possible indexable inserts
Type
GX09-1E1 ..
Body width
s1
1,4 mm
Functional width
f
16,6 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
GX24-RF8-SILVER-P-01
GX-E-RF8
Grooving and copy turning – cutting inserts
Show variations
P
M
K
N
S
H
O
GX24-UF4-SILVER-P-01
GX-E-UF4
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
GX-E-GD3-TTG-P-01
GX-E-GD3
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
GX-UF8-SILVER-P-01
GX-E-UF8
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
