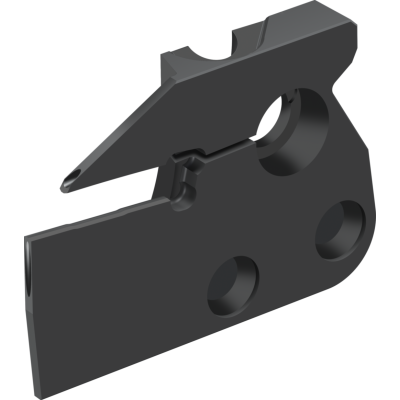

Grooving module – Radial grooving

G1634-33L-2T21GX24-P NEW 2021

EAN-code: 0637762937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Replacement module Screw clamping
VAT 0% 156,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
W
7,2 mm
Maximum cutting depth
Tmax
21 mm
Indexable insert width
s
2 mm
Maximum grooving diameter
Dmax
42 mm
Center height
h1
24 mm
Overall length
l1
49 mm
Tool designation
Designation
G1634-33L-2T21GX24-P
Possible indexable inserts
Type
GX24-1E2 ..
Module size
E33
Body width
s1
1,5 mm
Compatible products
Products
W T GX24 CE4 SILVER P 01
GX-E-CE4
Grooving and parting off – cutting inserts
Show variations
W T GX24 CF5 SILVER P 01
GX-E-CF5
Grooving and parting off – cutting inserts
Show variations
W T GX24 CF6 SILVER P 01
GX-E-CF6
Grooving and parting off – cutting inserts
Show variations
W T GX UF8 SILVER P 01
GX-E-UF8
Grooving and recessing – cutting inserts
Show variations
