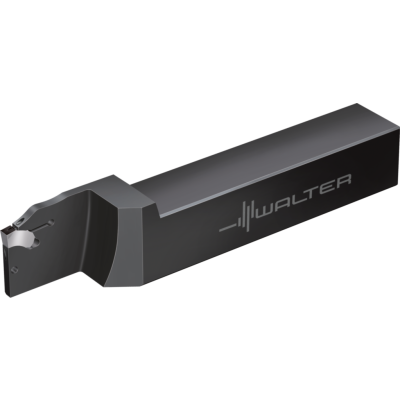

Shank tool – Radial grooving

G2012.1212L-2T16SX-P

EAN-code: 0816786935
T-Ex-Grooving-Icon T-Ex-Parting-Icon
PointCool-Icon T-WSP-SX-Icon
Self-clamping system Precision cooling
VAT 0% 190,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
b
12 mm
Maximum cutting depth
Tmax
16 mm
Maximum parting diameter
D2
38 mm
Indexable insert width
s
2
Shank height
h = h1
12 mm
Overall length
l1
120 mm
Maximum overhang
l4
25 mm
Tool designation
Designation
G2012.1212L-2T16SX-P
Possible indexable inserts
Type
SX-2E2
Body width
s1
1,6 mm
Functional width
f1
11,2 mm
Compatible products
Products
Accessories
Assembly parts
SX-E-R-CF5-TTG-P-01
SX-E-R-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
SX-E-R-CE4-TTG-P-01
SX-E-R-CE4
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W T SX CK8 POL P 01
SX-E-CK8
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
SX-E-CF5-TTG-P-01
SX-E-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
SX-E-CF6-TTG-P-01
SX-E-CF6
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
SX-E-CE4-TTG-P-01
SX-E-CE4
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
imageComingSoon big en US
Z_PIN
Pins
Show variations
