Products Cutting tools Turning Grooving and cutting External grooving Grooving toolholders Radial grooving Walter Cut SX G2012 G2012-12-25-L-SX 0853988935

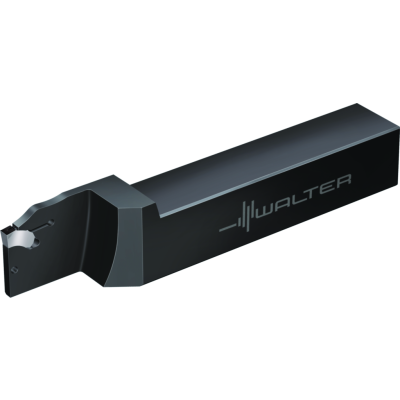

Shank tool – Radial grooving

G2012.2525L-2T26SX

EAN-code: 0853988935
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-SX-Icon
Self-clamping system
VAT 0% 159,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G2012L-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Maximum cutting depth
Tmax
26 mm
Maximum parting diameter
D2
52 mm
Indexable insert width
s
2 mm
Shank height
h = h1
25 mm
Overall length
l1
146 mm
maximum overhang
l4
36 mm
Tool designation
Designation
G2012.2525L-2T26SX
Possible indexable inserts
Type
SX-2E2
Body width
s1
1,6 mm
Functional width
f
24,2 mm
