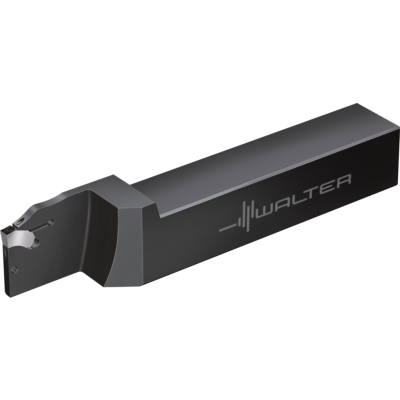

Shank tool – Radial grooving

G2012.2525L-4T33SX-P

EAN-code: 0816804935
T-Ex-Grooving-Icon T-Ex-Parting-Icon
PointCool-Icon T-WSP-SX-Icon
Self-clamping system Precision cooling
VAT 0% 238,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
B
25 mm
Maximum cutting depth
Tmax
33 mm
Indexable insert width
s
4 mm
Shank height
h = h1
25 mm
Overall length
l1
130 mm
maximum overhang
l4
48 mm
Tool designation
Designation
G2012.2525L-4T33SX-P
Possible indexable inserts
Type
SX-4E4
Body width
s1
3,4 mm
Functional width
f1
23,3 mm
