Products Cutting tools Turning Grooving and cutting External grooving Grooving toolholders Walter Cut UX G2016-20-32-UX-P G2016-2525N-12T40UX-P

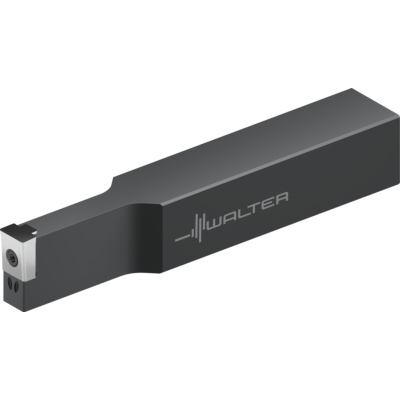

Shank tool – Radial grooving

G2016-2525N-12T40UX-P

EAN-code: 0993956935
T-Ex-Grooving-Icon
PointCool-Icon T-WSP-UX-Icon
Screw clamping Precision cooling
VAT 0% 245,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
G2016-P-EX-D-04
Enlarge
Description Symbol Value
Shank width
b
25 mm
Maximum cutting depth
Tmax
41 mm
Indexable insert width
s
12
Shank height
h = h1
25 mm
Overall length
l1
150 mm
Maximum overhang
l4
53 mm
Tool designation
Designation
G2016-2525N-12T40UX-P
Possible indexable inserts
Type
UX-12E12 ..
Functional width
f
19 mm
Compatible products
Adaptors
Accessories
Assembly parts
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
