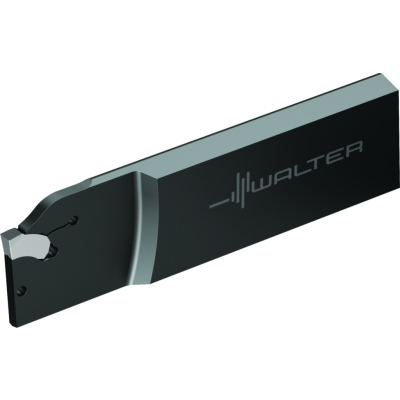

Reinforced parting blade

G2042.32L-1.5T20SX

EAN-code: 0707159937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-SX-Icon
Self-clamping system
VAT 0% 199,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G2042L-D-02
Enlarge
Description Symbol Value
Maximum cutting depth
Tmax
20 mm
Indexable insert width
s
1.5
Maximum grooving diameter
Dmax
40 mm
Shank height
h4
32 mm
Center height
h1
24,6 mm
Overall length
l1
110 mm
Tool designation
Designation
G2042.32L-1.5T20SX
Possible indexable inserts
Type
SX-1E1
Body width
s1
1,2 mm
