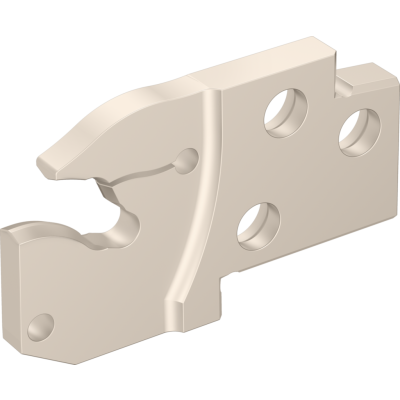

Grooving module – Radial grooving

G2632-E20L-2T20SX

EAN-code: 0795605937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-SX-Icon
VAT 0% 107,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G2632-20-32-L-SX -D-01
Enlarge
Description Symbol Value
Shank width
W
4,4 mm
Maximum cutting depth
Tmax
2 mm
Indexable insert width
s
2 mm
Maximum grooving diameter
D2
65 mm
Overall length
l1
42 mm
Tool designation
Designation
G2632-E20L-2T20SX
Possible indexable inserts
Type
SX-2E2
Module size
E20
Body width
s1
1,6 mm
