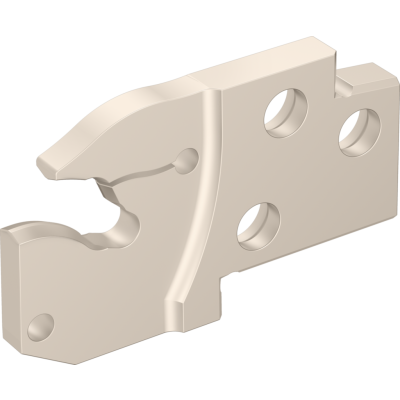

Grooving module – Radial grooving

G2632-E25L-3T25SX

EAN-code: 0818822937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-SX-Icon
VAT 0% 107,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
W
5,9 mm
Maximum cutting depth
Tmax
25 mm
Indexable insert width
s
3 mm
Maximum grooving diameter
D2
90 mm
Overall length
l1
53 mm
Tool designation
Designation
G2632-E25L-3T25SX
Possible indexable inserts
Type
SX-3E3
Module size
E25
Body width
s1
2,4 mm
