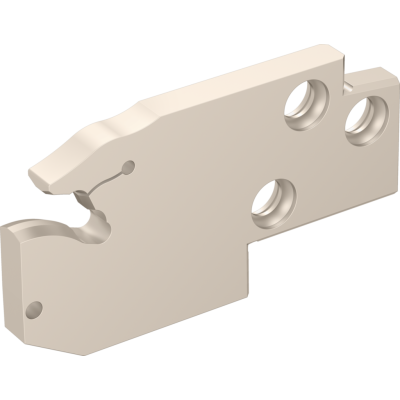

Grooving module – Radial grooving

G2632-E25R-5T35SX

EAN-code: 0795619937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-SX-Icon
VAT 0% 110,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Maximum cutting depth
Tmax
35 mm
Indexable insert width
s
5 mm
Maximum grooving diameter
D2
80 mm
Overall length
l1
63 mm
Tool designation
Designation
G2632-E25R-5T35SX
Possible indexable inserts
Type
SX-5E5
Module size
E25
Body width
s1
4,3 mm
