Products Cutting tools Turning Grooving and cutting External grooving Grooving toolholders Walter Cut MX G3011-P G3011-20-32-R-MX-P G3011-2525R-MX22-4-P

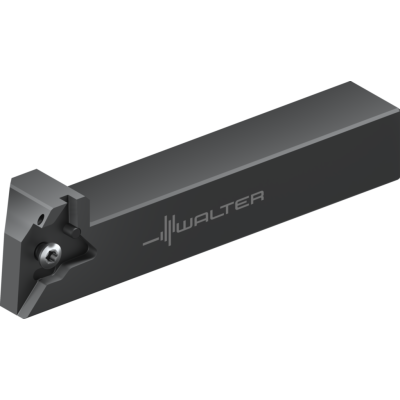

Shank tool – Radial grooving

G3011-2525R-MX22-4-P

EAN-code: 0855241935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
PointCool-Icon T-WSP-MX-Icon
Screw clamping Precision cooling
VAT 0% 245,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G3011-P-EX-D-02
Enlarge
Description Symbol Value
Shank width
b
25 mm
Maximum cutting depth
Tmax
6 mm
Indexable insert width
s
4 - 5.7
Shank height
h = h1
25 mm
Overall length
l1
125 mm
Maximum overhang
l4
26 mm
Tool designation
Designation
G3011-2525R-MX22-4-P
Possible indexable inserts
Type
MX22-4E ..
Functional width
f1
22,2 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
MX-E-TEIL-60-TTG-P-01
MX-E-TEIL-60
External thread – 60° partial profile – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-RF5-TTG-P-01
MX-RF5
Grooving and copy turning – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-CF5-TTG-P-01
MX-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
imageComingSoon big en US
Z_PIN
Pins
Show variations
