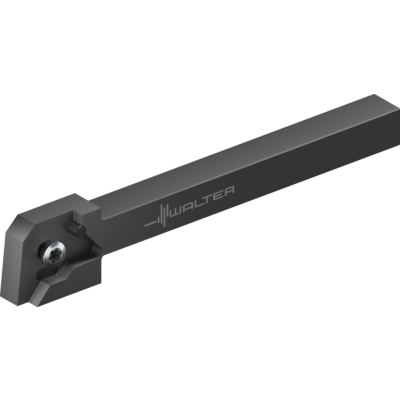

Shank tool - Radial grooving

G3011-1212R-MX22-2

EAN-code: 0920590935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
T-Swisstype-M-Icon T-WSP-MX-Icon
Screw clamping
VAT 0% 127,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
b
12 mm
Maximum cutting depth
Tmax
6 mm
Indexable insert width
s
0.5 - 3.3
Shank height
h = h1
12 mm
Shank height
h4
5 mm
Overall length
l1
120 mm
Maximum overhang
l4
26 mm
Tool designation
Designation
G3011-1212R-MX22-2
Possible indexable inserts
Type
MX22-2E ..
Functional width
f1
10,3 mm
Compatible products
Products
Accessories
Assembly parts
MX22-E-EN-VOLL-TTG-P-01
MX-EN_VOLL_ISO
External thread – Full profile – Cutting inserts
Show variations
P
M
K
N
S
H
O
MX-E-TEIL-60-TTG-P-01
MX-E-TEIL-60
External thread – 60° partial profile – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-RF5-TTG-P-01
MX-RF5
Grooving and copy turning – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-GD8-TTG-P-01
MX-GD8
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-R-CF5-TTG-P-01
MX-R-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-CF5-TTG-P-01
MX-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
MX-L-CF5-TTG-P-01
MX-L-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_PIN
Pins
Show variations
