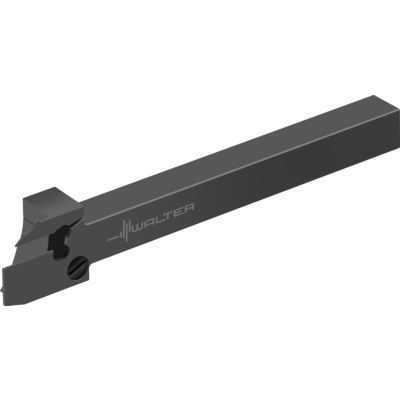

Shank tool – Radial grooving
G4014-1010R-1T12DX18 NEW 2021
EAN-code: 0685175935
Side screw clamping
VAT 0%
136,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
B
10 mm
Indexable insert width
s
1 mm
Maximum grooving diameter
Dmax
25 mm
Shank height
h = h1
10 mm
Shank height
h4
4 mm
Overall length
l1
110 mm
Maximum projection length
l4
23 mm
Tool designation
Designation
G4014-1010R-1T12DX18
Possible indexable inserts
Type
DX18-1E1 ..
Body width
s1
0,8 mm
Functional width
f1
9,6 mm
