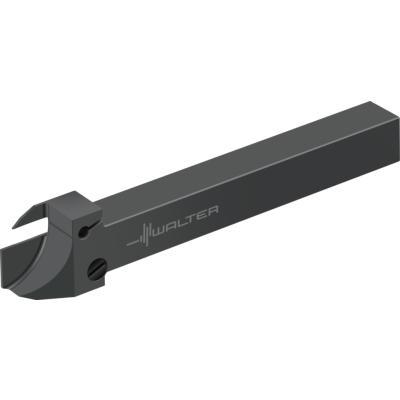

Shank tool – Radial grooving

G4014-1212R-1T12DX18 NEW 2021

EAN-code: 0685177935
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
T-Swisstype-M-Icon T-WSP-DX-E-Icon T-WSP-DX-F-Icon
Side screw clamping
VAT 0% 140,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G4014-10-16-DX-D-01
Enlarge
Description Symbol Value
Shank width
b
12 mm
Indexable insert width
s
1
Maximum grooving diameter
Dmax
25 mm
Shank height
h = h1
12 mm
Shank height
h4
3 mm
Overall length
l1
110 mm
Maximum projection length
l4
22,3 mm
Tool designation
Designation
G4014-1212R-1T12DX18
Possible indexable inserts
Type
DX18-1E1 ..
Body width
s1
0,8 mm
Functional width
f1
11,6 mm
Compatible products
Products
Accessories
Assembly parts
DX-E-N-UF8-TTG-P-01
DX-E-N-UF8
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
DX-E-CF6-TTG-P-01
DX-E-CF6
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
DX-E-CF5-TTG-P-01
DX-E-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
DX-E-CE4-TTG-P-01
DX-E-CE4
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
imageComingSoon big en US
Z_PIN
Pins
Show variations
