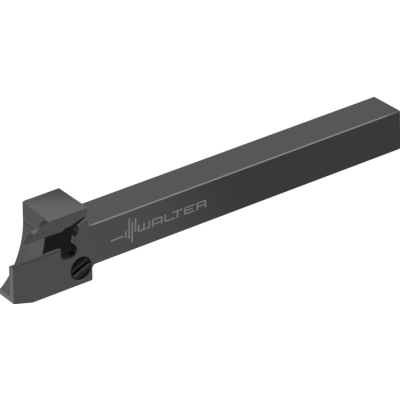

Shank tool – Radial grooving
G4014-1010R-2T10DX18
EAN-code: 0995521935
Side screw clamping
VAT 0%
140,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Enlarge
- Drawings
- DXF - Basic geometry
Description
Symbol
Value
Shank width
b
10 mm
Indexable insert width
s
2
Maximum grooving diameter
Dmax
20 mm
Shank height
h = h1
10 mm
Shank height
h4
3,5 mm
Overall length
l1
110 mm
Maximum projection length
l4
22 mm
Tool designation
Designation
G4014-1010R-2T10DX18
Possible indexable inserts
Type
DX18-2E2 ..
Body width
s1
1,6 mm
Functional width
f1
9,2 mm
