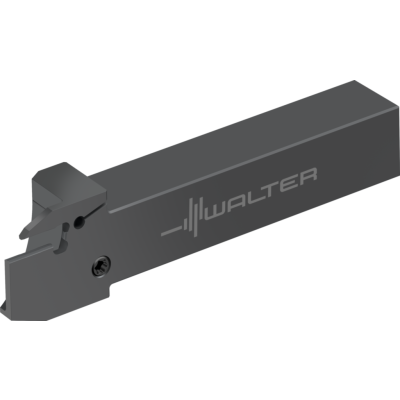

Shank tool – Radial grooving
G4014-2020R-3T17DX18
EAN-code: 0995528935
Side screw clamping
VAT 0%
168,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Enlarge
- Drawings
- DXF - Basic geometry
Description
Symbol
Value
Shank width
b
20 mm
Indexable insert width
s
3
Maximum grooving diameter
Dmax
35 mm
Shank height
h = h1
20 mm
Shank height
h4
3 mm
Overall length
l1
120 mm
Maximum projection length
l4
30 mm
Tool designation
Designation
G4014-2020R-3T17DX18
Possible indexable inserts
Type
DX18-3E3 ..; DX18-3F3 ..
Body width
s1
2,4 mm
Functional width
f1
18,8 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
