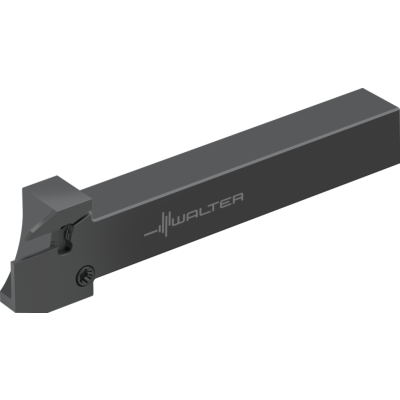

Shank tool – Radial grooving
G4014-1616R-2T12DX18 NEW 2019
EAN-code: 0995532935
Side screw clamping
VAT 0%
142,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
B
16 mm
Indexable insert width
s
2 mm
Maximum grooving diameter
Dmax
25 mm
Shank height
h = h1
16 mm
Shank height
h4
4 mm
Overall length
l1
120 mm
Maximum projection length
l4
24 mm
Tool designation
Designation
G4014-1616R-2T12DX18
Possible indexable inserts
Type
DX18-2E2 ..
Body width
s1
1,6 mm
Functional width
f1
15,2 mm
