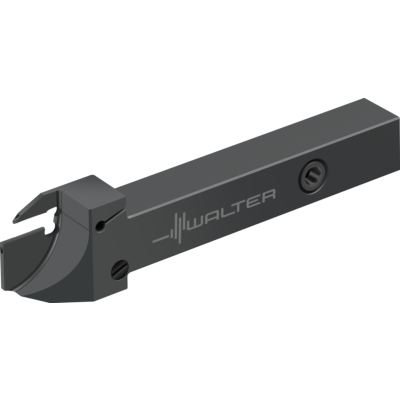

Shank tool – Radial grooving
G4014-1616L-3T17DX18-P NEW 2019
EAN-code: 0998280935
Side screw clamping
Precision cooling
VAT 0%
214,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
B
16 mm
Indexable insert width
s
3 mm
Maximum grooving diameter
Dmax
35 mm
Shank height
h = h1
16 mm
Shank height
h4
4 mm
Overall length
l1
120 mm
Maximum projection length
l4
30 mm
Tool designation
Designation
G4014-1616L-3T17DX18-P
Possible indexable inserts
Type
DX18-3E3 ..; DX18-3F3 ..
Body width
s1
2,4 mm
Functional width
f1
14,8 mm
