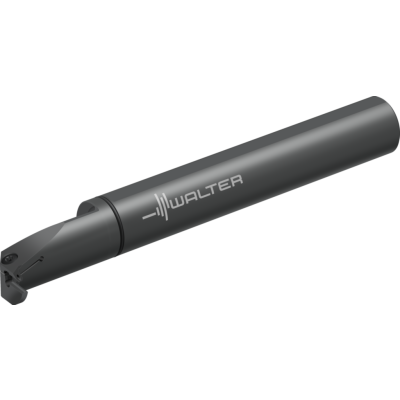

Boring bar – Internal grooving
G4221-32SR-3T10-DX18-P NEW 2021

EAN-code: 0685220936
Screw clamping
Precision cooling
VAT 0%
383,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum grooving diameter
Tmax
10 mm
Indexable insert width
s
3
Boring bar diameter d 1
d1
32 mm
Minimum hole diameter
Dmin
32 mm
Functional length
l21
248,8 mm
Maximum projection length
l4
59,3 mm
Tool designation
Designation
G4221-32SR-3T10-DX18-P
Possible indexable inserts
Type
DX18-3E3 ..; DX18-3F3 ..
Body width
s1
2,5 mm
Functional width
f
26,6 mm
