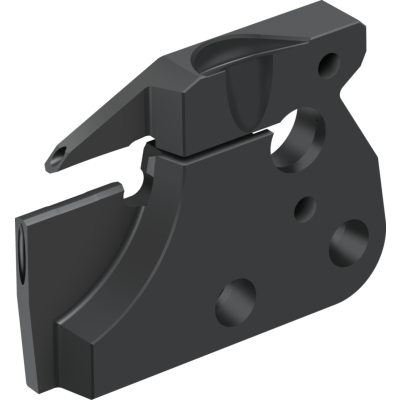

Grooving module – Radial grooving

G4634-33L-2T16DX18-P NEW 2021

EAN-code: 0659374937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
PointCool-Icon T-WSP-DX-Icon
Replacement module Screw clamping
VAT 0% 156,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
W
7,2 mm
Maximum cutting depth
Tmax
16 mm
Indexable insert width
s
2 mm
Maximum grooving diameter
Dmax
32 mm
Center height
h1
24 mm
Overall length
l1
46 mm
Tool designation
Designation
G4634-33L-2T16DX18-P
Possible indexable inserts
Type
DX18-2E2 ..
Module size
E33
Body width
s1
1,6 mm
