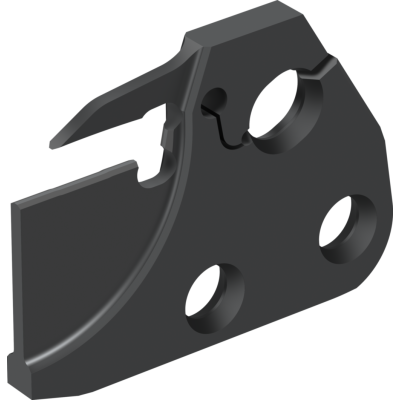

Grooving module – Radial grooving

G4635-30N-2T17DX18 NEW 2021

EAN-code: 0685264937

Replacement module Screw clamping

VAT 0% 104,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Shank width

4 mm

Maximum cutting depth

T_max

17 mm

Indexable insert width

2 mm

Maximum grooving diameter

D_max

35 mm

Center height

h₁

24 mm

Overall length

l₁

42 mm

Tool designation

Designation

G4635-30N-2T17DX18

Possible indexable inserts

Type

DX18-2E2 ..

Module size

E30

Body width

s₁

1,6 mm
