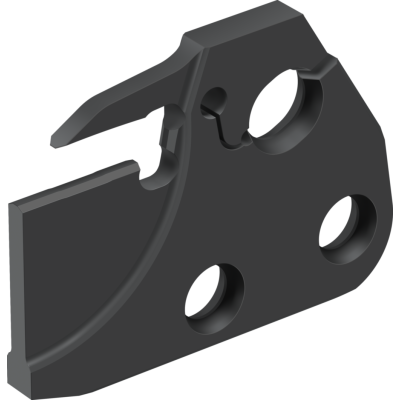

Grooving module – Radial grooving

G4635-30N-3T17DX18 NEW 2021

EAN-code: 0685265937
T-Ex-Grooving-Icon T-Ex-Parting-Icon
T-WSP-DX-Icon
Replacement module Screw clamping
VAT 0% 104,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Shank width
W
4 mm
Maximum cutting depth
Tmax
17 mm
Indexable insert width
s
3 mm
Maximum grooving diameter
Dmax
35 mm
Center height
h1
24 mm
Overall length
l1
42 mm
Tool designation
Designation
G4635-30N-3T17DX18
Possible indexable inserts
Type
DX18-3E3 ..; DX18-3F3 ..
Module size
E30
Body width
s1
2,4 mm
