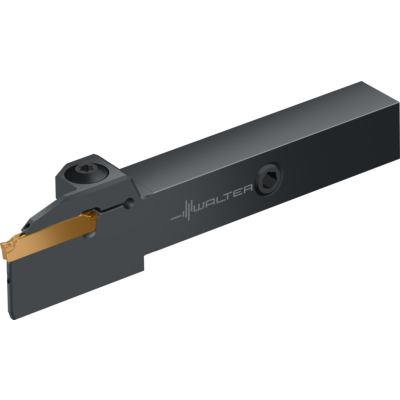

Shank tool – Radial grooving
G5011-1616R-3T21GD26-P NEW 2025
EAN-code: 4063467234421
Screw clamping
Precision cooling
VAT 0%
200,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
b
16 mm
Maximum cutting depth
Tmax
21 mm
Coolant entry thread size
Th
G 1/8"
Maximum cutting diameter
Dmax
120 mm
Indexable insert width
s
3
Shank height
h = h1
16 mm
Shank height
h4
4 mm
Overall length
l1
120 mm
Maximum projection length
l4
40 mm
Tool designation
Designation
G5011-1616R-3T21GD26-P
Possible indexable inserts
Type
GD26-3 ..
Body width
s1
2,4 mm
Functional width
f1
14,8 mm
Compatible products
Products
Accessories
Assembly parts
