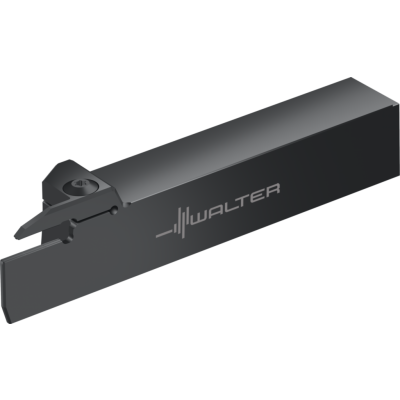

Shank tool – Radial grooving
G5011-2525R-3T26GD26 NEW 2025
EAN-code: 4063467233936
Screw clamping
VAT 0%
164,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
b
25 mm
Maximum cutting depth
Tmax
26 mm
Maximum cutting diameter
Dmax
120 mm
Indexable insert width
s
3
Shank height
h = h1
25 mm
Overall length
l1
150 mm
Maximum projection length
l4
45 mm
Tool designation
Designation
G5011-2525R-3T26GD26
Possible indexable inserts
Type
GD26-3 ..
Body width
s1
2,4 mm
Functional width
f1
23,8 mm
