Products Cutting tools Turning Grooving and cutting Inserts Double-edged inserts, GX Circlip grooves Grooving and parting off – cutting inserts GX GX16-2E140L00-GD8 WSM23S
Grooving and parting off – cutting inserts

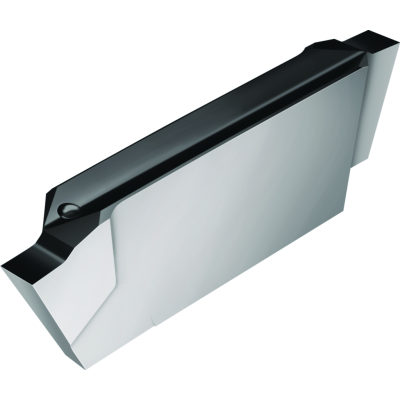

GX16-2E140L00-GD8 WSM23S

EAN-code: 0892366939
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-GX-D-03
Enlarge
Description Symbol Value
Maximum cutting depth
Tmax
1,53 mm
Cutting width
s
1,4 mm
Feed rate
f
0.05–0.10 mm
Cutting edge length
l
16 mm
Designation
GX16-2E140L00-GD8 WSM23S
Radius
R
0 mm
Tolerance cutting width
STol
±0.02
Length tolerance
lTol
±0.02
