Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink MF-thread Without internal cooling 2xD H5150106 4042446135317

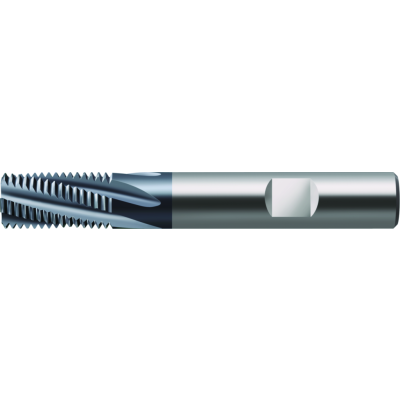

Solid carbide thread milling cutters

H5150106-M12X1.5

EAN-code: 4042446135317
P-Tr-Thread-Mill-external-Icon Tr-Profil-M-MF-DIN-Icon
M-48HRC-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-Icon
Universal thread milling cutter for external thread
P
M
K
N
S
H
O
VAT 0% 492,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR 20 H5150106 ZHB D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
12 mm
Max. depth of cut
Lc
22,5 mm
Connection diameter
d1
12 mm
Thread size
DN
MF 12x1.5
Overall length
l1
83 mm
Functional length
l4
38 mm
Tool designation
Designation
H5150106-M12X1.5
Number of teeth
Z
5
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
