Solid carbide thread milling cutters

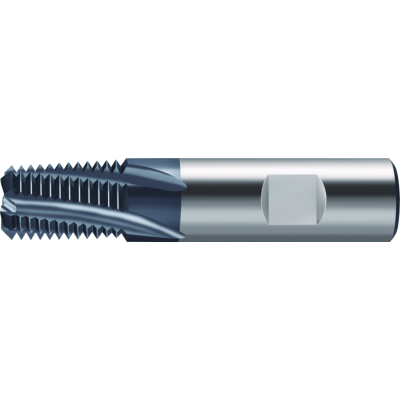

H5551106-NPT1/4-3/8

EAN-code: 4042446135393
P-Tr-Tapered-Hole-Icon P-Tr-Tapered-Through-Hole-Icon Tr-Profil-NPT-Icon
M-48HRC-Icon Tr-Kon-Fraeser-10-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 466,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P Tr 10 H5551106 ZHB D 01
Enlarge
Description Symbol Value
Functional length
l4
26 mm
Cutting edge length
Lc
15,21 mm
Cutting edge diameter
Dc
9,9 mm
Connection diameter
d1
1 mm
Thread size
DN
NPT 1/4-3/8-18
Overall length
l1
66 mm
Tool designation
Designation
H5551106-NPT1/4-3/8
Number of teeth
Z
3
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
