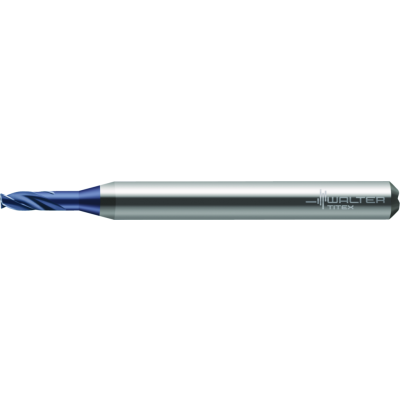

Solid carbide pilot drills with coolant-through

K5191TFT-5

EAN-code: 4031132276755
D-drilling-convex-Icon D-drilling-cross-hole-Icon D-drilling-inclination-Icon D-drilling-pinhole-thru-hole-Icon D-pilot-drilling-180C-Icon
D-2xDc-Icon D-IK-Icon D-Konisch-1-30-Icon D-Spitzenw-180-Icon
For angled and round surfaces (e.g. crankshafts) Conical contour 1:30 – for step-free piloting
P
M
K
N
S
H
O
VAT 0% 128,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge diameter
Dc
5 mm
Shank diameter
d1
6 mm
Cutting edge diameter
d3
4,9 mm
Flute length
l2
19 mm
Distance reference point PK
l15
3 mm
Shank length
l5
36 mm
Cutting edge length
Lc
11 mm
Overall length
l1
63 mm
Tool designation
Designation
K5191TFT-5
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
