Octagonal Finishing Face Mill

M2025-100-B32-15-03

EAN-code: 0749983731
M-face-milling-finishing-Icon
M-Anstellw-42-Icon M-Wiper-Icon M-WSP-neg-Icon
16 cutting edges per roughing insert, 4 cutting edges per finishing insert With 3 lateral finishing inserts
P
M
K
N
S
H
O
VAT 0% 1570,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

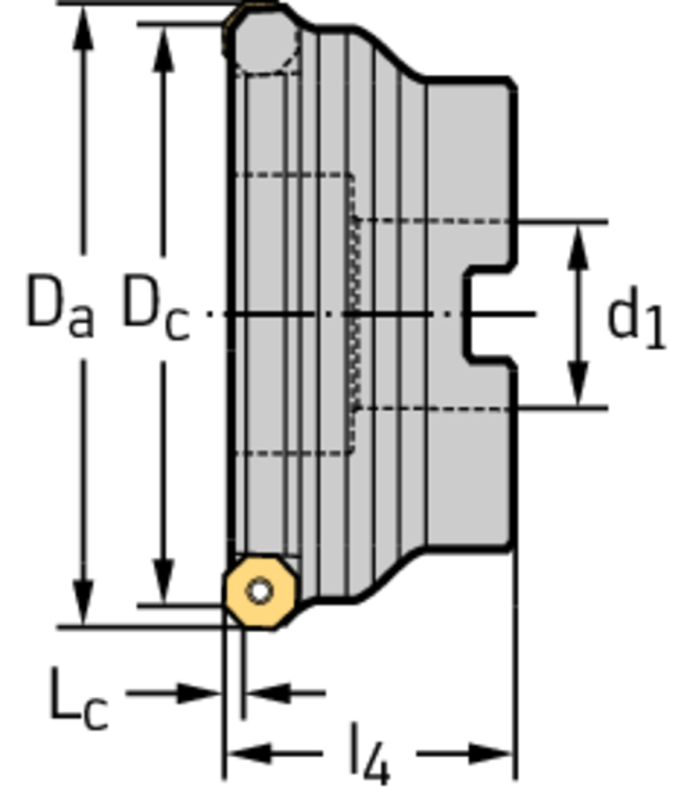

Technical details
Description Symbol Value
Cutting edge diameter
Dc
1 mm
Cutting edge length
Lc
3 mm
Number of indexable inserts
No. of inserts
3 PCE
Number of indexable inserts
No. of inserts
12 PCE
Maximum cutting diameter
Da
108 mm
Functional length
l4
5 mm
Tool designation
Designation
M2025-100-B32-15-03
Possible indexable inserts
Type
P45424-1-G67
Possible indexable inserts
Type
ONHF050408
Weight
WT
1,97 kg
Number of teeth
Z*
15
