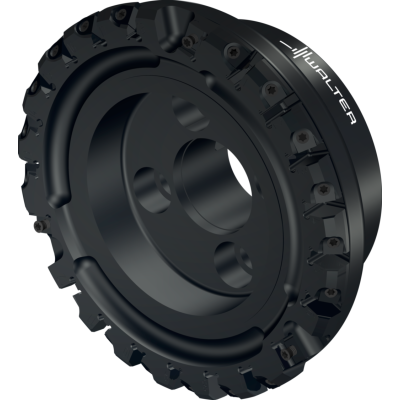

Octagonal Finishing Face Mill

M2025-160-B40-21-03

EAN-code: 0749985731
M-face-milling-finishing-Icon
M-Anstellw-42-Icon M-Wiper-Icon M-WSP-neg-Icon
16 cutting edges per roughing insert, 4 cutting edges per finishing insert With 3 lateral finishing inserts
P
M
K
N
S
H
O
VAT 0% 2455,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge diameter
Dc
16 mm
Cutting edge length
Lc
3 mm
Number of indexable inserts
No. of inserts
18 PCE
Number of indexable inserts
No. of inserts
3 PCE
Maximum cutting diameter
Da
168 mm
Functional length
l4
63 mm
Tool designation
Designation
M2025-160-B40-21-03
Possible indexable inserts
Type
P45424-1-G67
Possible indexable inserts
Type
ONHF050408
Weight
WT
5,94 kg
Number of teeth
Z*
21
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI ONHF F67 TIGER P 01
ONHF MIT ECKENRADIUS
Negative octagonal
Show variations
W A A150M NCT P 01
A150M.0
Combination adaptor
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_WEDGES
Wedge
Show variations
