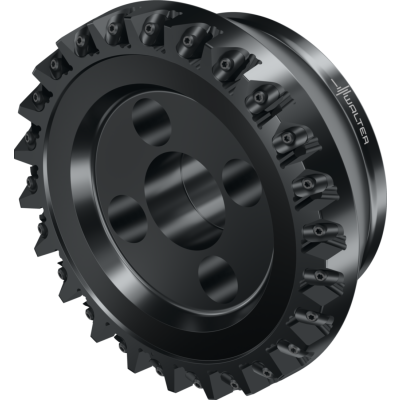

Close pitch cutter

M2136-160-B40-24-06

EAN-code: 0840275724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-Wiper-Icon M-WSP-neg-Icon
Axial repositioning not possible 8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 2629,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
6,5 mm
Number of indexable inserts - face
Number of WSP
24 EA
Cutting edge diameter
Dc
160 mm
Connection diameter
d1
40
Maximum projection length
l4
63 mm
Tool designation
Designation
M2136-160-B40-24-06
Possible indexable inserts
Type
SNEF120408R; SNEX1204PN ..
Weight
6,04 kg
Number of teeth
Z
24
Compatible products
Products
Adaptors
Accessories
Assembly parts
SNEF-B67-ECKENRADIUS-TTGPVD-P-01
SNEF-B67 MIT ECKENRADIUS
Negative square
Show variations
P
M
K
N
S
H
O
W MI SNEX B67 ANTHRA P 01
SNEX-PNR
Finishing inserts
Show variations
P
M
K
N
S
H
O
W MI SNEX PNN A27 ANTHRA P 01
SNEX-PNN
Finishing inserts
Show variations
P
M
K
N
S
H
O
AB001-S-P-01
AB001-S
DIN 69871 AD/B shell mill arbor
Show variations
AB001-J-P-01
AB001-J
MAS-BT JIS B 6339 shell mill arbor
Show variations
AB001-H-P-01
AB001-H
DIN 69893-1 A shell mill arbor
Show variations
W-A-AK155-CAPTO-P-01
AB001-C
Shell mill adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_WEDGES
Wedge
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
