Products Cutting tools Milling Milling tools with indexable inserts Copy milling cutters M2471, RNMX.. Cylindrical bore 0997918727

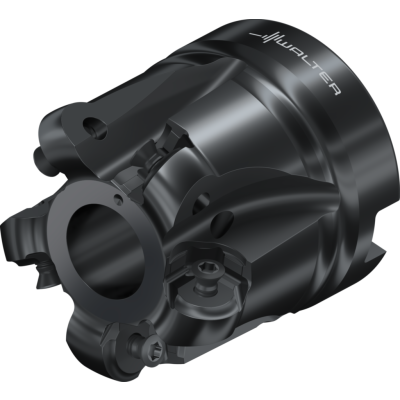

Copy milling cutter with round inserts

M2471-040-B16-05-05 NEW 2019

EAN-code: 0997918727
M-copy-milling-4-Icon M-face-milling-roughing-Icon
M-WSP-neg-Icon
8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 450,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W MI F2334 B D 01
Enlarge
Description Symbol Value
Radius
r
5 mm
Cutting edge length
Lc
5 mm
Maximum cutting diameter
Da
40 mm
Functional length
l4
4 mm
Tool designation
Designation
M2471-040-B16-05-05
Possible indexable inserts
Type
RNMX1005M0
Weight
WT
0,21 kg
Number of teeth
Z
5
Number of indexable inserts
No. of inserts
5 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
RNMX-K67-TTGPVD-P-01
RNMX-K67
Negative round
Show variations
RNMX-G57-TTGPVD-P-01
RNMX-G57
Negative round
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 SK P 01
AK155.S
DIN 69871 AD/B shell mill arbor
Show variations
W A AK155 BT P 01
AK155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
