Products Cutting tools Milling Milling tools with indexable inserts Copy milling cutters M2473, RNGN M2473-T-RNGN1207 0631795727

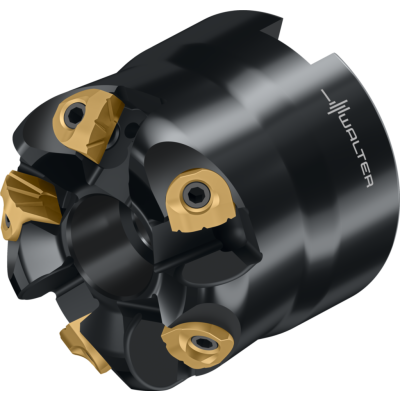

Copy milling cutter with round inserts

M2473-050-B22-05-06 NEW 2023

EAN-code: 0631795727
M-copy-milling-4-Icon M-face-milling-roughing-Icon
M-WSP-neg-oL-Icon
8 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 734,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-M2473-B1-D-01
Enlarge
Description Symbol Value
Radius
r
6,35 mm
Cutting edge length
Lc
6 mm
Maximum cutting diameter
Da
50 mm
Functional length
l4
45 mm
Tool designation
Designation
M2473-050-B22-05-06
Possible indexable inserts
Type
RNGN1207 ..
Weight
WT
0,39 kg
Number of teeth
Z
5
Number of indexable inserts
No. of inserts
5 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
RNGN-E-CERBRIG-P-01
RNGN-T01020-C
Ceramic – Negative round
Show variations
RNGN-E-CERBRIG-P-01
RNGN-E-C
Ceramic – Negative round
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 SK P 01
AK155.S
DIN 69871 AD/B shell mill arbor
Show variations
W A AK155 BT P 01
AK155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_WEDGES
Wedge
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
