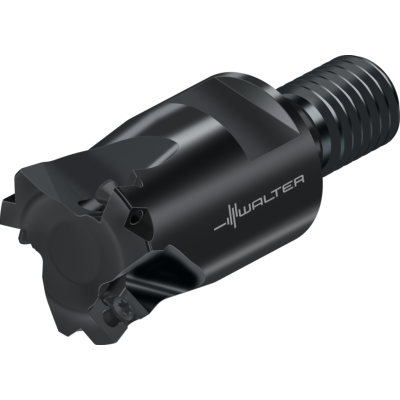

High-feed milling cutter

M4002-035-TC16-03-01,5

EAN-code: 0993296724
M-face-milling-roughing-Icon M-helical-interpolation-Icon M-plunging-open-Icon M-pocket-milling-Icon M-ramping-Icon
M-Anstellw-15-Icon M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 336,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Cutting edge length
Lc
1,5 mm
Maximum radial depth of cut
ar
8,4 mm
Cutting edge diameter
Dc
18,09 mm
Connection diameter
d1
28
Maximum cutting diameter
Da
35 mm
Functional length
l4
40 mm
Tool designation
Designation
M4002-035-TC16-03-01,5
Possible indexable inserts
Type
SD .. 09T3 ..; SDMX0904ZDR
Weight
0,18 kg
Number of teeth
Z
3
Number of indexable inserts
Number of WSP
3
Compatible products
Products
Accessories
Assembly parts
SDMX-E57-TTGPVD-P-01
SDMX-E57 (M4002)
Positive square
Show variations
P
M
K
N
S
H
O
W MI SDMX E27 TTG PVD P 01
SDMX-E27 (M4002)
Positive square
Show variations
P
M
K
N
S
H
O
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
P
M
K
N
S
H
O
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Finishing inserts
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
