Products Cutting tools Milling Milling tools with indexable inserts Face milling cutters Positive indexable inserts M4003 and F2010, 45° M4003-SD09 Cylindrical bore 0836054727
Face milling cutters

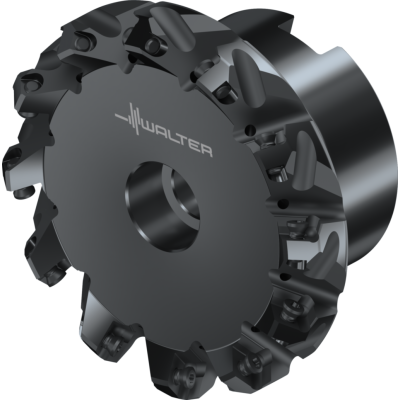

M4003-080-B27-12-4.5

EAN-code: 0836054727
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-ramping-Icon
M-Anstellw-45-Icon M-Wiper-Icon M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 764,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-F2233-B05-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
4,5 mm
Cutting edge diameter
Dc
80 mm
Functional length
l4
5 mm
Tool designation
Designation
M4003-080-B27-12-4.5
Possible indexable inserts
Type
SD .. 09T3AZN; SDHX09T3AZR
Weight
WT
1,13 kg
Number of teeth
Z
12
Number of indexable inserts
No. of inserts
12 PCE
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDGT F57 UNBESCH P 01
SDET-F57
Positive square
Show variations
W MI SDMW AZN A57 TTG P 01
SDMX-A57 (M4000)
Positive square
Show variations
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
W MI SDMT AZN F57 TTG P 01
SDMX-F57 (M4000)
Positive square
Show variations
W MI SDMT AZN D57 TTG P 01
SDMX-D57 (M4000)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHX AZR A88 ANTHRA P 01
SDHX-A88 (M4000)
Positive square
Show variations
W MI SDHT AZN G88 CU P 01
SDGX-G88 (M4000)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
W-MI-SDGT-AZN-G77-TTG-PVD-P-01
SDGX-G77 (M4000)
Positive square
Show variations
SDGT-AZN-F57-TTGPVD-P-01
SDGX-F57 (M4000)
Positive square
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 SK P 01
AK155.S
DIN 69871 AD/B shell mill arbor
Show variations
W A AK155 BT P 01
AK155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W A AK155 HSK P 01
AK155.7
DIN 69893-1 A shell mill arbor
Show variations
W A A155 SK P 01
A155.S
DIN69871-A shell mill arbor
Show variations
W A A155 BT P 01
A155.BT
MAS-BT JIS B 6339 shell mill arbor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
