Products Cutting tools Milling Milling tools with indexable inserts Shoulder milling cutters Positive indexable inserts M4132 and F2010, SD.. Cylindrical bore M4132-063-B22-07-09
Shoulder milling cutters

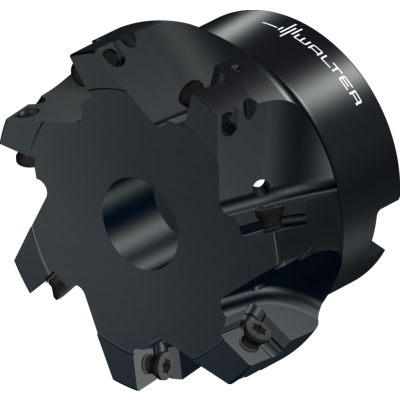

M4132-063-B22-07-09

EAN-code: 0736434724
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon M-slot-milling-Icon
M-Anstellw-8945-Icon M-WSP-pos-Icon
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 594,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-M4132-B-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
8,4 mm
Number of indexable inserts
No. of inserts
7 PCE
Cutting edge diameter
Dc
63 mm
Maximum projection length
l4
4 mm
Tool designation
Designation
M4132-063-B22-07-09
Possible indexable inserts
Type
SD .. 09T3 ..; SDGT09T3PDR
Number of teeth
Z
7
Compatible products
Products
Adaptors
Accessories
Assembly parts
W MI SDMW A57 TTG P 01
SDMW-A57 (M4)
Positive square
Show variations
SDMT-F57-M4-TTGPVD-P-01
SDMT-F57 (M4)
Positive square
Show variations
SDMT-D57-M4-TTGPVD-P-01
SDMT-D57 (M4)
Positive square
Show variations
SDMT-D51-TTGPVD-P-01
SDMT-D51 (M4)
Positive square
Show variations
W MI SDHT G88 CU P 01
SDHT-G88 (M4)
Positive square
Show variations
SDGT-PDR-D57-M4-TTGPVD-P-01
SDGT-PDR-D57 (M4)
Positive square
Show variations
W A AC001 SK P 01
AC001-S
SK adaptor – Vibration-damped
Show variations
W A AC001 MAS BT P 01
AC001-J
MAS-BT adaptor – Vibration-damped
Show variations
W A AC001 HSK P 01
AC001-H
HSK adaptor – Vibration-damped
Show variations
W A AC001 CAPTO P 01
AC001-C
Walter CaptoTM adaptor – vibration damped
Show variations
W A AK155 CAPTO P 01
AK155.8
Shell mill adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
